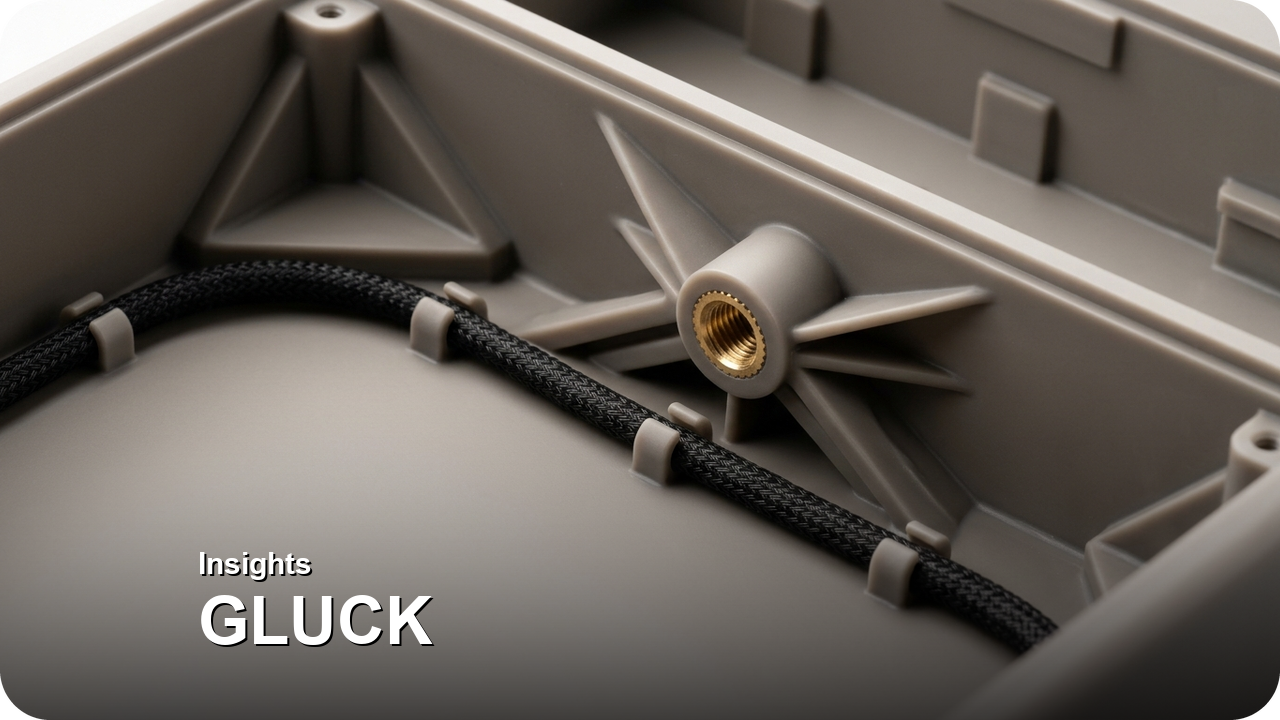

Rapid Structural Reinforcement After Drop & Vibration Testing: Adding Corner Gussets and Thickening Ribs in Rev B

Rather than comparing unit prices in isolation, hardware decision-makers evaluate total batch cost (CM vs. CA), post-ECO revision cost (UM vs. UA), split-release carryover inventory (I[t]), and multi-SKU tooling exposure. (※ Custom Quoting Principle: Because industrial SLA bridge and production quotes vary completely by industry sector, application, part geometry, finishing scope, quantity, and delivery schedule, GLUCK does not expose fixed unit-price tables or auto-calculators—providing tailored engineer-led TCO evaluations per 3D CAD.)

• Post-ECO Revision Cost Equations (R = 100 revised units): Mold steel welding/EDM modification UM + R × pM' vs. Industrial SLA digital CAD revision UA + R × pA'.
• Honest Revision Accounting (UA > 0): Rather than claiming '$0 revision cost,' this model accounts for updated CAM slicing, fixture/masking updates, and first-article re-verification (UA), while eliminating costly steel rework (UM ≫ UA), multi-week press downtime, and obsolete Rev-A MOQ scrap.
• Custom Engineer Evaluation by Revision Scope & Schedule: Revision turnaround and batch pricing are tailored by GLUCK engineers according to the modified feature geometry, masking zones, quantity (R=100 units), and target delivery date.

• Global Industry Benchmark (Global Field-Instrumentation Benchmark: Rapidly Reinforcing Internal Corner Gussets After Vibration Test Findings): Leading hardware, robotics, and medical device teams across North America, Europe, and Japan increasingly run commercial PVT and early production batches on industrial SLA fleets—committing to hard steel tooling only after field telemetry locks the design and demand surpasses N*.
• 2030 Manufacturing Paradigm Outlook: While adding ribs to a steel mold is relatively straightforward, thickening walls or relocating features in the non-steel-safe direction requires costly welding—constraints absent in SLA.
• GLUCK's 48-Machine Smart Factory Execution: By combining 48 industrial SLA systems under one roof with locked slice orientations, signed Zone-B masking maps, and master color plaques, GLUCK bridges the gap between 1-unit prototyping and 100–1,000+ unit series production.

Core Engineering Rule: A favorable cost comparison (CA < CM) never automatically guarantees part suitability. Before authorizing production, every part must be screened across the following 6 usage gates:

1. Gate 1 (Application & Failure Consequence): Distinguish exterior covers, bezels, air ducts, and assembly jigs from high-consequence safety-critical structural components.
2. Gate 2 (Mandatory Material & Certification Specs): Verify whether the blueprint mandates specific certified thermoplastics (e.g., UL94 flame ratings or medical biocompatibility) and cross-check GLUCK's website summary categories (G20-BR, G40-JG, White, Clear) and official English PDF TDS files (G10-BR.pdf, G10-WH.pdf, G40-GW.pdf, G40-JG.pdf).
3. Gate 3 (Thermal, UV & Chemical Environment): Evaluate operating temperature against resin HDT (using G40-JG or heat shields near warm components), and specify opaque primer plus UV/chemical-resistant polyurethane topcoats for outdoor sunlight or hospital IPA wipedowns.
4. Gate 4 (Long-Term Bolt Clamping Creep & Cyclic Fatigue): Prevent polymer creep relaxation and boss cracking by integrating flanged brass inserts, metallic compression limiters, or hybrid metal latches/hinges.
5. Gate 5 (Dimensional Tolerance, Cosmetic Grade & Zone A/B Masking): Review datum tolerances per part geometry and separate painted cosmetic exteriors (Zone A) from masked bare-resin mating interfaces (Zone B) to prevent paint-thickness interference.
6. Gate 6 (Pre-Production Verification & First-Article Sampling): Validate 1–5 First Article samples in actual assembly and operating conditions before releasing a 100+ unit batch.

Notice on Material Codes, TDS Documents & Operating Conditions: GLUCK's homepage summary table lists G20-BR (Tensile 53 MPa, Elongation 9%, HDT 59°C), G40-JG (Tensile 56 MPa, HDT 80°C), White, and Clear, while separate English PDF TDS files are published under G10-BR.pdf (Tensile 40–58 MPa, Elongation 7–12%, HDT 55–68°C @66psi), G10-WH.pdf (Tensile 49 MPa, HDT 56°C @66psi), G40-GW.pdf (Tensile 54 MPa, HDT 59°C @66psi), and G40-JG.pdf (Tensile 44–56 MPa, Flexural Modulus 2,675–2,765 MPa, HDT 80–93°C @66psi). Correspondence between homepage summary codes (such as G20-BR or White) and separate PDF filenames (such as G10-BR or G10-WH), as well as the exact resin lot, manufacturer grade, and active TDS revision, must be confirmed during pre-order consultation and should not be assumed identical without confirmation. HDT values are standard test metrics (@66psi), not continuous operating guarantees; orders of 100+ identical parts require first-article prototype validation.

Q1. When ISTA transit-drop or vibration testing exposes a weak boss root, how do mold modification costs compare against updating corner gussets in the SLA CAD?
A1. Evaluating Rapid Structural Reinforcement After Drop & Vibration Testing: Adding Corner Gussets and Thickening Ribs in Rev B requires comparing full lifecycle equations—including upfront mold NRE (FM), digital setup (FA), revision costs (UM vs. UA), and MOQ-induced carryover stock (I[t])—rather than unit price alone. Whenever total volume is below break-even (Q < N*) or design revisions remain likely during field deployment, GLUCK's 48-machine industrial SLA smart factory preserves capital and accelerates time-to-market.

Q2. How does GLUCK balance confidential 3D CAD security with long-term repeat-order reproducibility?
A2. GLUCK operates a strict Two-Tier Data Governance Policy: standard one-off project files are automatically purged after 6 months (with immediate deletion available upon NDA security request), while pre-authorized repeat and aftermarket SKUs store locked build orientations, support maps, Zone-B masking drawings, and signed master samples for consistent re-ordering.

Q3. If custom TCO analysis shows industrial SLA is more economical than molding, can we release mass production immediately?
A3. Cost comparison and physical part qualification are two separate steps. Even when CA < CM, engineers must verify the 6-Gate Usage Conditions—thermal/UV/chemical exposure, bolt-clamping creep protection, Zone-A/B paint masking (60–120 μm / 0.0024–0.0047 in coating allowance), and 1–5 unit First Article assembly testing—before releasing full batch production.
